IL-11 Reporter HEK 293 Cells

Product Unit size Cat. code Docs. Qty. Price

HEK-Blue™ IL-11 Cells

Human IL-11 Reporter Cells

Show product

3-7 x 10e6 cells

hkb-hil11rv2
+-
$1,493

HEK-Blue™ IL-11 vial

Additional cell vial

Show product

3-7 x 10e6 cells

hkb-hil11rv2-av
+-
$896

Interleukin-11 Reporter Cells

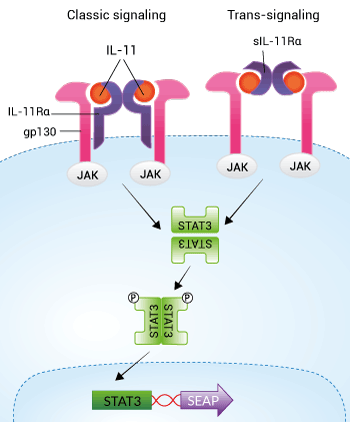

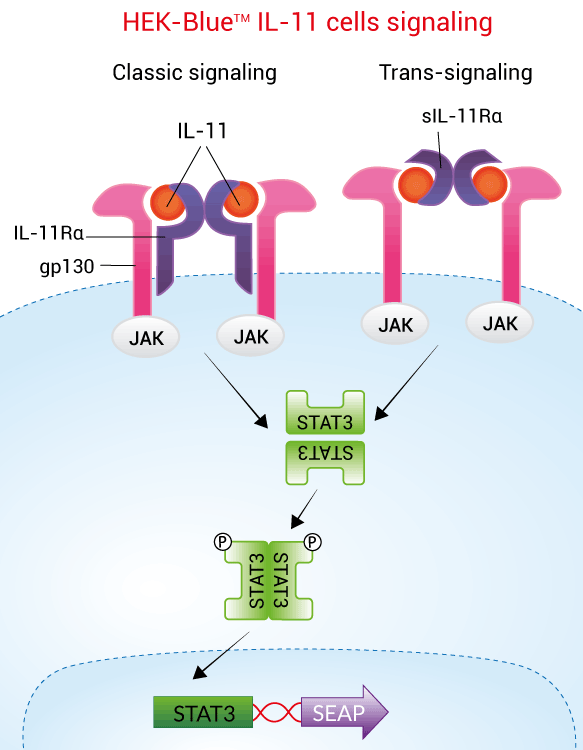

Signaling pathway in HEK-Blue™ IL-11 cells
Signaling pathway in HEK-Blue™ IL-11 cells

HEK-Blue™ IL-11 cells are designed to monitor human IL-11-induced STAT3 stimulation or inhibition through SEAP detection. This colorimetric bioassay can be used for screening activatory molecules, such as engineered cytokines, or inhibitory molecules, such as neutralizing antibodies.

HEK-Blue™ IL-11 cells respond strongly to recombinant human IL-11 and mouse (m)IL-10 (see figure). The reliable and consistent performance of HEK-Blue™ IL-10 cells makes them suitable for release assays of therapeutic molecules that inhibit IL-11 signaling, such as monoclonal antibodies.



Key Features

  • Readily assessable STAT3-inducible SEAP reporter activity
  • Convenient readout using  QUANTI-Blue™ Solution
  • Strong response to human (h) and mouse (m) IL-11
  • Stability guaranteed for 20 passages

Applications

  • Therapeutic development
  • Drug screening
  • Release assay



The IL-11 cytokine belongs to the IL-6 family and has pleiotropic physiological functions, ranging from development and tissue homeostasis to immune responses.

 More details



Note: A new clone is provided with an improved IL-11 response. The cat code has been changed accordingly (hkb-il11rv2).

Figures

Validation of IL-11Rα expression
Validation of IL-11Rα expression

Human IL-11Rα mRNA expression in HEK-Blue™ IL-11 cells.
Total mRNA was extracted from ~1x106 HEK-Blue™ parental cells (blue) and HEK-Blue™ IL-11 cells (red). Human IL-11Rα mRNA was amplified using quantitative RT-qPCR. Data are represented as the log2 fold change comparing hIL-11Rα relative expression between the two cell lines.

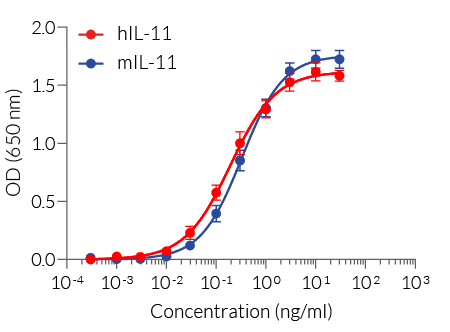

Cellular response to IL-11
Cellular response to IL-11

Dose-response of HEK-Blue™ IL-11 cells to recombinant IL-11. Cells were stimulated with increasing concentrations of recombinant human IL-11 (hIL-11) and mouse IL-11 (mIL-11). After overnight incubation, the STAT3-induced SEAP activity was determined using QUANTI-Blue™, a SEAP detection reagent. Data are shown as optical density (OD) at 650 nm (mean ± SEM)

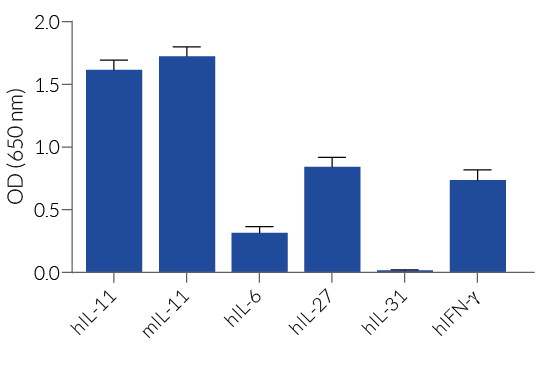

HEK-Blue™ IL-11 specificity
HEK-Blue™ IL-11 specificity

Response of HEK-Blue™ IL-11 cells to a panel of cytokines. Cells were stimulated with various human and mouse recombinant cytokines: 10 ng/ml of hIL-11 and mIL-11, hIL-6, hIL-27, hIL-31, and hIFN-γ. After overnight incubation, SEAP activity was assessed using QUANTI-Blue™. Data are shown as optical density (OD) at 650 nm (mean ± SEM).

Back to the top

Specifications

Cell type: Epithelial

Tissue origin: Human Embryonic Kidney

Target: IL-11

Specificity: Human, mouse

Reporter gene: SEAP

Antibiotic resistance: BlasticidinHygromycinZeocin®

Detection ranges:

  • Human IL-11: 0.1 ng/ml - 100 ng/ml
  • Mouse IL-11: 0.1 ng/ml - 100 ng/ml

Growth medium: Complete DMEM (see TDS)

Growth properties: Adherent

Mycoplasma-free: Verified using Plasmotest™

Quality control: Each lot is functionally tested and validated.

Additional information: The expression of human IL-11Rα is confirmed by RT-qPCR.

Back to the top

Contents

HEK-Blue™ IL-11 Cells (hkb-il11rv2)



HEK-Blue™ IL-11 vial (hkb-il11r-av)

  • 1 vial containing 3-7 x 106 cells



Shipped on dry ice Shipped on dry ice (Europe, USA, Canada and some areas in Asia)



Notification:  Reference #hkb-hil11r-av can only be ordered together with reference #hkb-hil11rv2.

Back to the top

Details

Cell line description

HEK-Blue™ IL-11 cells were generated by stable transfection with the genes encoding the human IL-11 receptor (IL-11Rα and gp130 chains), human STAT3, and a STAT3-inducible secreted embryonic alkaline phosphatase (SEAP) reporter. The binding of IL-11 to its receptor triggers a signaling cascade leading to the activation of STAT3 and the subsequent production of SEAP. This can be readily assessed in the supernatant using QUANTI-Blue™ Solution, a SEAP detection reagent.
HEK-Blue™ IL-11 cells detect human and murine IL-11. Of note, these cells also respond to human IL-6 and IL-27 as they express the gp130 co-receptor shared by IL-11 and other cytokines of the IL-6 family (see figures).



IL-11 background

The cytokine interleukin 11 (IL-11) belongs to the IL-6 family,  which also includes IL-6, IL-27 p28/IL-30, IL-31, Leukemia inhibitory factor (LIF), Oncostatin M (OSM), Cardiotrophin-like cytokine (CLC), Ciliary neurotrophic factor (CNTF), Cardiotrophin-1 (CT-1), and Neuropoietin [1-3]. IL-11 has pleiotropic physiological functions, ranging from development and tissue homeostasis, to immune responses [1, 2]. IL-11 signalisation requires a multimeric structure comprising two specific α chains (IL-11Rα), two gp130 chains (common to the IL-6 signaling receptor), and 2 cytokines. This hexameric complex allows the juxtaposition of the intracellular Janus kinases (JAK) and activation of the signal transducer and activator of transcription 3 (STAT3) [1,3]. Other signaling pathways include the Ras-MAPK pathway, the PI3-K-Akt pathway, and the p38 and JNK MAPK pathways [2, 3].

While gp130 is ubiquitously expressed, IL-11Rα expression is cell-specific. Soluble IL-11Rα resulting from IL-11R proteolysis allows trans-signaling and widens the number of target cells [4]. Importantly, IL-11, like IL-6, has no affinity toward gp130 in the absence of its specific receptor α chain [1].





1. Garbers C. & Scheller J., 2013. Interleukin-6 and interkeukin-11: Same same but different. Biol. Chem. 394:1145.
2. Kang S. et al., 2020. Historical overview of the interleukin-6 family cytokine. J. Exp. Med. 217: e20190347.
3. Morris R. et al., 2018. The molecular details of cytokine signaling via the JAK/STAT pathway. Protein Science. 27:1984.
4. Lamertz L. et al., 2018. Soluble gp130 prevents interleukin-6 and interleukin-11 cluster signaling but not intracellular autocrine responses. Science Sign. 11(550):eaar7388).

Back to the top

FAQ Cell Lines

Visit our FAQ Any questions about our cell lines ? Visit our frequently asked questions page

Back to the top

Disclaimer:  These cells are for internal research use only and are covered by a Limited Use License (See Terms and Conditions). Additional rights may be available.
