Recombinant human IL-1β

Product Unit size Cat. code Docs. Qty. Price

Recombinant human IL-1β (CHO)

Cytokine, source: CHO cells - carrier-free

Show product

10 µg


Recombinant human IL-1β (E. coli)

Recombinant Cytokine, source: E. coli - with HSA carrier

Show product

10 µg


Recombinant human interleukin 1 beta - produced in CHO cells or E. coli

InvivoGen offers two recombinant versions of the mature human (h) interleukin 1 beta (IL-1β), expressed in

 Chinese hamster ovary (CHO) cells  -  carrier-free, or

 Escherichia coli (E. coli) - with HSA carrier.

Interleukin 1 beta (IL-1β) is a secreted pro-inflammatory cytokine that generates systemic and local responses to infection and injury. Human IL-1β is produced as a precursor (269 amino acids) cleaved intracellularly by the cysteine protease Caspase-1 to generate the active cytokine. IL-1β is a non-glycosylated polypeptide chain containing 153 amino acids with a molecular mass of 17 kDa.

 More details


InvivoGen's IL-1β cytokines can be used to induce its cognate signaling pathway in HEK-Blue™ IL-1β cells (see figure). The size and purity were assessed using SDS PAGE. The predicted size of human IL-1β is ~17 kDa. The higher band in the SDS-page of the CHO-derived IL-1β at ~19 kDa corresponds to the glycosylated protein (see figures).

Key features

  • Produced in CHO cells or  E. coli
  • High-quality: purity ≥ 95% and endotoxin level < 1EU/µg
  • Functionally tested


  • Cellular assays
  • Cell culture

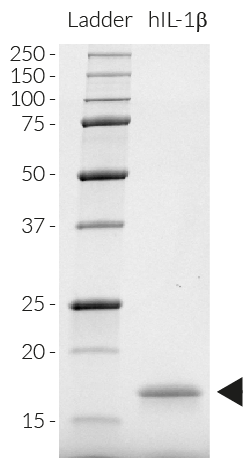

Detection by SDS-PAGE of CHO-derived IL-1β
Detection by SDS-PAGE of CHO-derived IL-1β

SDS PAGE of the recombinant human (h)IL-1β protein. 3 μg of CHO-derived hIL-1β was loaded on a 12% Mini-PROTEAN® TGX Stain-Free™ Precast Gel (Bio-Rad). Detection was performed as per the manufacturer’s instructions. Its predicted size is ~17 kDa (lower band). The higher band at ~19 kDa corresponds to the glycosylated protein.

Dose-response in HEK-Blue™ IL-1β cells to recombinant IL-1β cytokines
Dose-response in HEK-Blue™ IL-1β cells to recombinant IL-1β cytokines

Dose-response in HEK-Blue™ IL-1β cells to recombinant IL-1β cytokines of different sources. Cells were stimulated with increasing concentrations of recombinant human IL-1β, derived from E. coli (blue) or CHO cells (red). After overnight incubation, the NF-κB-induced SEAP activity was determined using QUANTI-Blue™, a SEAP detection reagent. Data are shown as optical density (OD) at 650 nm (mean ± SEM).

Back to the top



  • rcyc-hil1b: produced in Chinese hamster ovary (CHO) cells
  • rcyec-hil1b: produced in E. coli

Alternative name: IL1F2, Interleukin 1 beta

UniProt ID: P01584

Protein sequence: Ala117-Ser269

Molecular mass: ~ 17 kDa

Solubility: 100 μg/ml in water


  • Human IL-1β produced in CHO cells: Lyophilized from a 0.2 μm filtered solution in 20 mM Sodium Phosphate, 150 mM NaCl, and 5% saccharose buffer solution (pH 7)
  • Human IL-1β produced in E. coli: Lyophilized from a 0.2 μm filtered solution in PBS (pH 7) with human serum albumin (HSA) as a carrier protein

Quality control:

  • Purity: ≥95% (SDS-PAGE)
  • Endotoxin Level: ≤ 0.1 EU/μg (measurement by kinetic chromogenic LAL assay)
  • The biological activity has been confirmed using HEK-Blue™ IL-1β cells.
Back to the top


Note: Each product is sold separately.

Recombinant human IL-1β (produced in CHO cells) - Carrier-free

  • 10 μg of lyophilized recombinant human IL-1β (CHO)
  • 1.5 ml endotoxin-free water.

Recombinant human IL-1β (produced in E. coli) - Carrier HSA

  • 10 μg of lyophilized recombinant human IL-1β (E. coli)
  • 1.5 ml endotoxin-free water.


room temperature Recombinant human IL-1β is shipped at room temperature.

store Upon receipt, it should be stored at -20°C.

Back to the top


Interleukin 1β (IL-1β) is a soluble pro-inflammatory cytokine that plays a critical role in the host response to infection and injury [1]. It is synthesized as a pro-IL-1β zymogen by activated macrophages and must be cleaved by caspase-1 to generate its mature form [2]. IL-1β binding to the IL-1R1 receptor triggers the formation of the IL-1R1/IL-1R3/MyD88 complex and induces signaling leading to the activation of the transcription factors NK-κB and AP-1 [3].

Due to its role in mediating acute and chronic inflammation, IL-1β has emerged as a therapeutic target for auto-inflammatory diseases [1,4].


1. Dinarello C., 2018. Overview of the IL-1 family in innate inflammation and acquired immunity. Immunol Rev. 281(1): 8–27.
2. Lopez-Castejon G. & Brough D., 2011. Understanding the mechanism of IL-1β secretion. Cytokine Growth Factor Rev. 22(4):189-95.
3. Weber A. et al., 2010. Interleukin-1 (IL-1) pathway. Sci Signal. 3(105):cm1.
4. Dinarello CA., 2011. Interleukin-1 in the pathogenesis and treatment of inflammatory diseases. Blood. 117:3720–3732.
