G3-YSD

G3-YSD Unit size Cat. code Docs Qty Price
Y-form DNA - cGAS agonist
200 µg
tlrl-ydna
+-
$128.00

G3-ended Y-form Short DNA; cGAS Agonist

G3-YSD is a 26-mer DNA sequence derived from the HIV-1 RNA genome [1]. This short DNA displays a Y-shape arising from its palindromic sequence flanked by unpaired guanosine trimers (G3). The guanosine overhangs in this Y-form DNA have been identified as minimal recognition motifs for cGAS (cyclic GMP-AMP synthase, cGAMP synthase), a critical cytosolic DNA sensor [1].

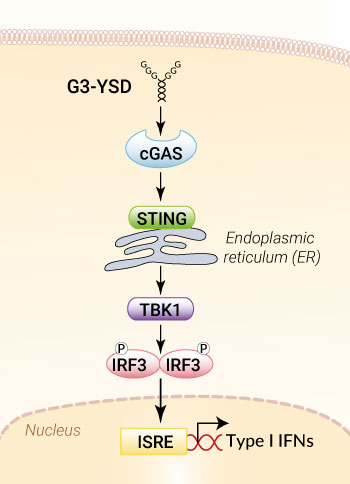

cGAS detects double-stranded DNA (dsDNA) over 40 bp in length, or stem-loop structures of single-stranded DNA (ssDNA) flanked by unpaired nucleotides [1-3]. Interaction of cGAS with its agonists promotes the synthesis of 2’3’-cGAMP, a second messenger that activates STING (stimulator of interferon genes), and the downstream production of type I interferons (IFNs) and other cytokines [2]. Response to G3-YSD is strictly cGAS-dependent, as demonstrated by the lack of type I IFN production upon intracellular delivery of G3-YSD in cGAS-KO cells [cf. InvivoGen's data hereunder].



Read our review on cytosolic DNA sensors.



References:

1. Herzner AM. et al., 2015. Sequence-specific activation of the DNA sensor cGAS by Y-form DNA structures as found in primary HIV-1 cDNA. Nat Immunol. 16(10):1025-33.
2. Li T. & Chen ZJ., 2018. The cGAS-cGAMP-STING pathway connects DNA damage to inflammation, senescence, and cancer. J Exp Med.
3. Luecke S. et al., 2017. cGAS is activated by DNA in a length-dependent manner. EMBO Rep. 18(10):1707-1715.

Figures

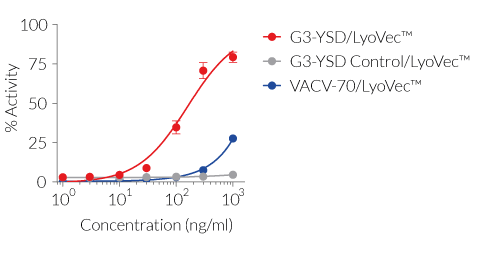

Evaluation of IRF induction
Evaluation of IRF induction

Intracellular delivery of G3-YSD induces a potent IRF response in a dose-dependent manner. THP1-Dual™ cells were stimulated with increasing concentrations of G3-YSD, G3-YSD Control or VACV-70 complexed with LyoVec™, or 1 x 104 U/ml hIFN-β. After overnight incubation, the IRF response was assessed by determining Lucia luciferase activity in the supernatant using QUANTI-Luc™. For each ligand, the response is expressed relative to that of hIFN-β (taken as 100%).

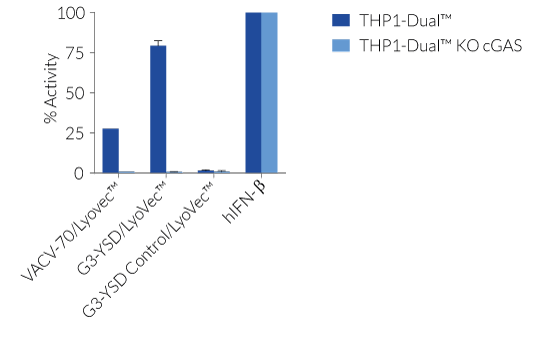

Evaluation of signaling pathway
Evaluation of signaling pathway

IRF response upon intracellular delivery of G3-YSD is strictly dependent on cGAS. THP1-Dual™ and THP1-Dual™ KO-cGAS cells were stimulated with 1 μg/ml G3-YSD, G3-YSD Control or VACV-70 complexed with LyoVec™, or 1 x 104 U/ml hIFN-β. After overnight incubation, the IRF response was assessed using QUANTI-Luc™ and expressed relative to that of hIFN-β (taken as 100%).

Back to the top

Specifications

Activity: cGAS agonist

Working concentration: 100 ng - 1 μg/ml

Sequence: 5’ GGG TATATATATGCATATATATA GGG 3’ (26 mer)

Note: G3-YSD contains a palindromic sequence for which self-hybridization results in double-stranded DNA. The flanking guanosine trimers in 5' and 3' remain unpaired.

Molecular weight: 8088.1 g/mol

Control: G3-YSD Control

Quality control:

  • The biological activity has been verified using cellular assays.
  • The absence of bacterial contamination, such as lipoproteins and endotoxins, has been confirmed using HEK-Blue™ TLR2 and HEK-Blue™ TLR4 cells.
Back to the top

Contents

  • 200 μg G3-YSD (G3-ended Y-form Short DNA)
  • 1.5 ml sterile endotoxin-free water

room temperature G3-YSD is provided lyophilized and shipped at room temperature.

store Store at -20°C.

stable Resuspended product is stable for 12 months at -20°C.

Alert Avoid repeated freeze-thaw cycles.
