RAW-Lucia™ ISG-KO-TREX1 Cells

RAW-Lucia™ ISG-KO-TREX1 Cells Unit size Cat. code Docs Qty Price
TREX1 Knockout IRF-Lucia Luciferase Reporter Cell Line
3-7 x 10e6 cells

You may also need : Zeocin® | View more associated products

Notification:  This product is for internal research use only. Additional rights may be available. Please visit InvivoGen’s Terms and Conditions.

TREX1 Knockout IRF-Inducible Lucia luciferase reporter mouse macrophages

RAW-Lucia™ ISG-KO-TREX1 cells were generated from the RAW-Lucia™ ISG cell line, which is derived from the murine RAW 264.7 macrophage cell line, through the stable knockout of the TREX1 gene. TREX1 (also known as DNAse III) is a major cellular 3’5’ exonuclease that plays a crucial role in maintaining immune homeostasis.

RAW-Lucia™ ISG-KO-TREX1 and RAW-Lucia™ ISG cells express a secreted reporter gene, Lucia luciferase, under the control of the I-ISG54 promoter which is comprised of the IFN-inducible ISG54 promoter enhanced by a multimeric ISRE.

RAW-Lucia™ ISG-KO-TREX1 and RAW-Lucia™ ISG cells can be used to study the role of TREX1 by monitoring IRF-induced Lucia luciferase activity. The levels of IRF-induced Lucia in the cell culture supernatant can be easily monitored using QUANTI-Luc™ 4 Lucia/Gaussia, a Lucia and Gaussia luciferase detection reagent.

The response of RAW‑Lucia™ ISG-KO-TREX1 cells to murine type I interferons (IFNs) is unaffected by the knockout of the TREX1 gene. The TREX1 KO appears to have little to no effect on the response to the ligands tested (e.g. VACV70/LyoVec and  2'3'-cGAMP).

RAW-Lucia™ ISG-KO-TREX1 cells are resistant to Zeocin®.

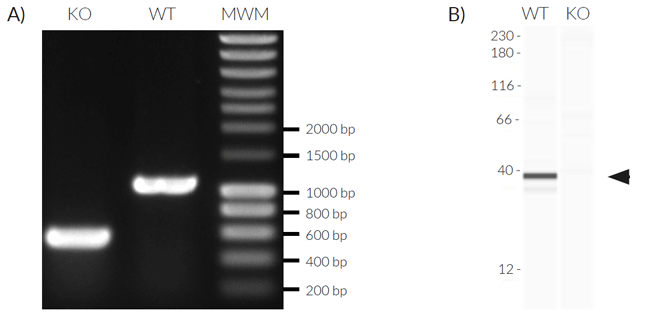

Validation of TREX1 KO in RAW-Lucia™ ISG-KO-TREX1 cells
Validation of TREX1 KO in RAW-Lucia™ ISG-KO-TREX1 cells

(A) The targeted TREX1 region in RAW‑Lucia™ ISG  (WT) and RAW‑Lucia™ ISG  KO‑TREX1(KO) cells was amplified by PCR. RAW-Lucia™ ISG-KO-TREX1 cells feature a biallelic deletion (arrow). MWM = molecular weight marker. (B) Lysates from RAW‑Lucia™ ISG (WT) and RAW‑Lucia™ ISG KO‑TREX1 (KO) cells were analyzed by Western blot (Wes™) using an anti‑murine TREX1 antibody, followed by an HRP conjugated anti‑rabbit secondary antibody. The arrow indicates the expected band for the TREX1 protein (34 kDa).

IRF induction in RAW-Lucia™ ISG-KO-TREX1
IRF induction in RAW-Lucia™ ISG-KO-TREX1

Response of RAW-Lucia™ ISG-KO-TREX1 cells to various stimuli. RAW-Lucia™ ISG-KO-TREX1 and RAW-Lucia™ ISG cells (parental cell line) were incubated with VACV70/LyoVec™ (1 µg/ml), poly(dA:dT)/LyoVec™ (1 µg/ml), poly(I:C) HMW/LyoVec™ (1 µg/ml), 5'ppp-dsRNA/LyoVec™ (1 µg/ml), 2'3'-cGAMP (3 µg/ml) and c-di-AMP (3 µg/ml). Mouse IFN-α (1x104 U/ml) and IFN-β (1x104 U/ml) serve as positive controls. Non-induced cells (NI) have been included as a negative control. After a 24h incubation, IRF activation was determined by measuring the relative light units (RLUs) in a luminometer using QUANTI-Luc™, a Lucia luciferase detection reagent. The IRF induction of each ligand is expressed relative to that of mIFN-β at 1x104 U/ml (taken as 100%).

Back to the top


Antibiotic resistance: Zeocin®

Growth Medium: DMEM, 4.5 g/l glucose, 2 mM L-glutamine, 10% (v/v) heat-inactivated fetal bovine serum, 100 U/ml penicillin, 100 μg/ml streptomycin, 100 μg/ml Normocin™ supplemented with Zeocin®

Quality Control:
TREX1 knockout is verified by functional assays and DNA sequencing to confirm frameshift mutation/deletion.

The cells are guaranteed mycoplasma-free.

This product is covered by a Limited Use License (See Terms and Conditions).

Back to the top


Dry Ice Shipped on dry ice (Europe, USA, Canada and some areas in Asia)
