ODN BW006 (ODN 684) - TLR9 Agonist

Stimulatory CpG ODN, Class B, Human/Mouse-preferred

ABOUT

Class B CpG oligonucleotide - Human & mouse TLR9 ligand

ODN BW006 (also known as ODN 684) is a synthetic oligonucleotide that contains unmethylated CpG dinucleotides in particular sequence contexts (CpG motifs), that are recognized by TLR9 leading to strong immunostimulatory effects.

ODN BW006 is a type B CpG ODN containing twice the optimal motif in human, GTCGTT [1]. ODN BW006 induces the proliferation of human peripheral blood mononucleated cells (PBMCs), peripheral blood mononucleated cells, (PBMCs), and mouse splenocytes, as vigorously as ODN 2006, a class B prototype ODN.

It was found to improve the rabies vaccine by inducing an earlier and more vigorous protective response [1]. ODN BW006 promotes a strong Th1 response [2, 3].



References:

1. Wang X. et al., 2008. A CpG oligodeoxynucleotide acts as a potent adjuvant for inactivated rabies virus vaccine.Vaccine. 26(15):1893-901.
2. Yan Y. et al., 2012. A CpG oligodeoxynucleotide potentiates the anti-tumor effect of HSP65-Her2 fusion protein against Her2 positive B16 melanoma in mice. Int Immunopharmacol. 12(2):402-7.
3. Zhang X. et al., 2011. Enhanced specific immune responses by CpG DNA in mice immunized with recombinant hepatitis B surface antigen and HB vaccine. Virol J. 8:78.

All products are for research use only, and not for human or veterinary use.

SPECIFICATIONS

Specifications

Synonyms
ODN 684
Target

TLR9

Sequence

5’-tcg acg ttc gtc gtt cgt cgt tc-3’ (23 mer). Note: Bases are phosphorothioate (nuclease resistant).

Molecular weight
7341 g/mol
Working concentration

1-5 μM OR 1-50 µg/ml for cellular assays

Appearance (form)
Lyophilized
Reconstitution buffer
Endotoxin-free water
Endotoxin

Negative (tested using EndotoxDetect™ assay)

Tested applications

Cellular assays

Quality control

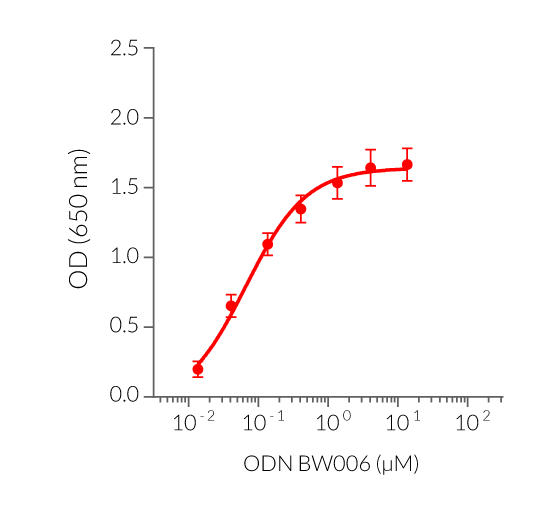

Each lot is functionally tested and validated using HEK-Blue™ hTLR9 Cells.

CONTENTS

Contents

  • Product:
    ODN BW006 (ODN 684)
  • Cat code:
    tlrl-bw006
  • Quantity:
    200 µg
Includes:

1.5 ml of endotoxin-free water

Notes:

ODN BW006 is sterile filtered prior to lyophilization.

Shipping & Storage

  • Shipping method:  Room temperature
  • Storage:

    • Upon receipt, store product at -20 °C
    Stability: The reconstituted product is stable up to 6 months at -20 °C.

    Caution:

    • Avoid repeated freeze-thaw cycles

DOCUMENTS

Documents

ODN BW006 (ODN 684)

Technical Data Sheet

Validation Data Sheet

Safety Data Sheet

Certificate of analysis
