IFN-α/β Reporter B16 Cells

Product Unit size Cat. code Docs. Qty. Price

B16-Blue™ IFN-α/β cells

Murine Type I IFNs Sensor Cells

Show product

3-7 x 10e6 cells

bb-ifnt1
+-
$1,457

B16-Blue™ IFN-α/β vial

Additional cell vial

Show product

3-7 x 10e6 cells

bb-ifnt1-av
+-

Notification:  Reference #bb-ifnt1-av can only be ordered together with reference #bb-ifnt1.

Murine Type I IFNs Reporter Cells

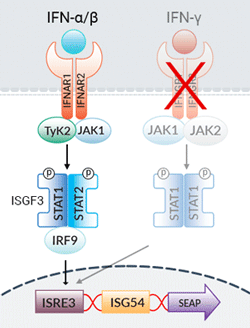

Signaling pathway in B16-Blue™ IFN-α/β cells
Signaling pathway in B16-Blue™ IFN-α/β cells

B16-Blue™ IFN-α/β cells were engineered from the murine B16 melanoma cell line to detect bioactive murine type I interferons (e.g. IFN-α, IFN-β) by monitoring the activation of the JAK/ISGF3 pathway. ISGF3 is a signaling complex comprising STAT1, STAT2, and IRF9.

IFN-α and IFN-β are important anti-viral cytokines that also have anti-proliferative and immunomodulatory functions [1, 2].

More More details



Cell line description

B16-Blue™ IFN-α/β cells were generated by stable transfection with the secreted embryonic alkaline phosphatase (SEAP) reporter under the control of the ISG54 promoter. This promoter comprises IFN-stimulated response elements (ISRE) that are recognized by the ISGF3 complex. The binding of IFN-α or IFN-β to their receptor triggers a signaling cascade leading to the activation of ISGF3 and the subsequent production of SEAP. This can be readily assessed in the supernatant using QUANTI-Blue™ Solution, a SEAP detection reagent.

B16-Blue™ IFN-α/β cells respond specifically to murine (m) IFN-α/β and do not respond to human (h) IFN-α/β. Stimulation of these cells with mIFN-α or mIFN-β, or type I IFN inducers, such as poly(I:C), poly(dA:dT) or 5’ppp-dsRNA delivered intracellularly, triggers the production of SEAP by the activation of the IRF-inducible promoter. Of note, B16-Blue™ IFN-α/β cells do not respond to mIFN-γ (see figures).

Key features

  • Fully functional murine IFN-α/β signaling pathway
  • Readily assessable ISRE-inducible SEAP reporter activity
  • No response to human IFN-α/β
  • No response to murine IFN-γ

Applications:

  • Detection of murine IFN-α and IFN-β
  • Screening of anti-mIFN-α/β or anti-mIFNAR antibodies
  • Screening of small molecule inhibitors of the IFN-α/β pathway



References:

1. Schreiber G. 2017. The molecular basis for differential type I interferon signaling. J. Biol. Chem. 292:7285-94.
2. McNab F. et al., 2015. Type I interferons in infectious disease. Nat Rev Immunol. 15(2):87-103.

Figures

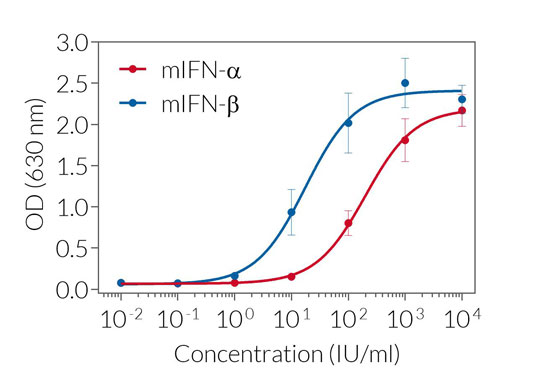

Dose-response of B16-Blue™ IFN‑α/β cells to recombinant murine IFN‑α/β.
Cells were stimulated with increasing concentrations of recombinant murine IFN‑αA (also known as mIFN-α3) and mIFN-β. After overnight incubation, the ISGF3 response was determined using QUANTI‑Blue™ Solution, a SEAP detection reagent, and reading the optical density (OD) at 630 nm. The OD at 630 nm is shown as mean ± SEM.

B16-Blue™ IFN-α/β specificity
B16-Blue™ IFN-α/β specificity

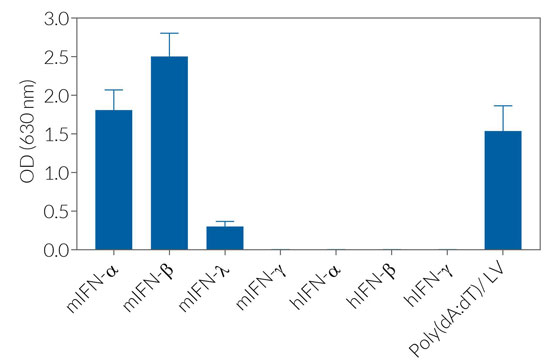

Response of B16-Blue™  IFN-α/β cells to a panel of cytokines.
Cells were stimulated with various human and murine recombinant cytokines: 1000 IU/ml mIFN-αA, mIFN-β, human IFN-α2a (hIFN-α2a), hIFN-β, 100 ng/ml of mIFN-λ, mIFN-γ, hIFN-γ, or 1 µg/ml of the type I IFN inducer poly(dA:dT) complexed extemporaneously with the transfection reagent LyoVec™ (Poly(dA:dT/LV). After overnight incubation, SEAP activity was assessed using QUANTI-Blue™ Solution. The OD at 630 nm is shown as mean ± SEM.

Back to the top

Specifications

Detects murine type I interferons:

  • Detection range for mouse IFN-α: 102 - 104 IU/ml
  • Detection range for mouse IFN-β: 10 - 104 IU/ml

Antibiotic resistance: Zeocin®

Growth medium: DMEM, 4.5 g/l glucose, 10% (v/v) heat-inactivated fetal bovine serum, 2 mM L-glutamine, 100 µg/ml Normocin™, 100 U/ml penicillin, 100 µg/ml streptomycin

Guaranteed mycoplasma-free



This product is covered by a Limited Use License (See Terms and Conditions).

Back to the top

Contents

  • 1 vial containing 3-7 x 106 cells
  • 1 ml of Zeocin® (100 mg/ml)
  • 1 ml of Normocin™ (50 mg/ml)
  • 1 ml of QB reagent and 1 ml of QB buffer (sufficient to prepare 100 ml of QUANTI-Blue™ Solution, a SEAP detection reagent)

Dry ice shipping Shipped on dry ice (Europe, USA, Canada and some areas in Asia)

Back to the top

Details

Type I interferons, in particular interferon-alpha (IFN-α) and interferon beta (IFN-β), play a vital role in host resistance to viral infections [1, 2]. The type I IFN family is a multi-gene cytokine family that encodes 14 partially homologous IFN-α subtypes in mice (13 in humans), a single IFN-β, and several poorly defined single gene products (IFN-ɛ, IFN-τ, IFN-κ, IFN-ω, IFN-δ, and IFN-ζ) [1, 2].  IFN-α and IFN-β are the best-defined and most broadly expressed type I IFNs [2].

IFN-β and all of the IFN-α subtypes bind to a heterodimeric transmembrane receptor composed of the subunits IFNAR1 and IFNAR2 which are associated with the tyrosine kinases Tyk2 and Jak1 (Janus kinase 1) respectively. These kinases phosphorylate STAT1 and STAT2 which then dimerize and interact with IFN regulatory factor 9 (IRF9), leading to the formation of the ISGF3 complex. ISGF3 binds to IFN-stimulated response elements (ISRE) in the promoters of IFN-stimulated genes (ISG) to regulate their expression.



1. Schreiber G. 2017. The molecular basis for differential type I interferon signaling. J. Biol. Chem. 292:7285-94.
2. McNab F. et al., 2015. Type I interferons in infectious disease. Nat Rev Immunol. 15(2):87-103.

Back to the top

FAQ Cell Lines

Visit our FAQ Any questions about our cell lines ? Visit our frequently asked questions page

Back to the top

Notification:  This product is for internal research use only. Additional rights may be available. Please visit InvivoGen’s Terms and Conditions.
